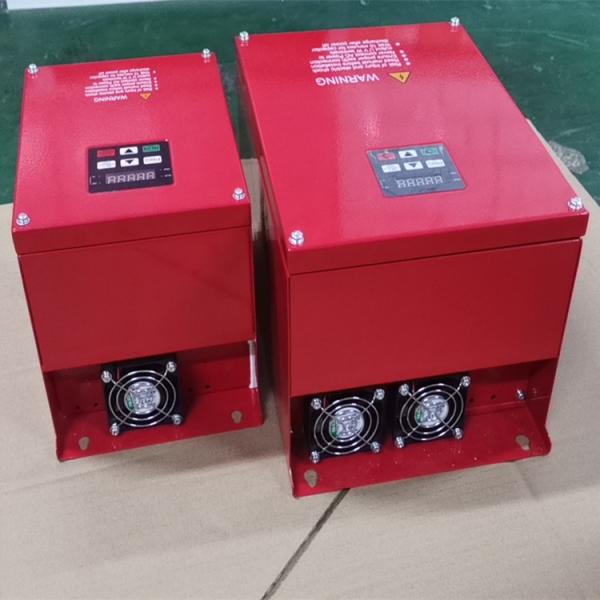

IP54 Waterproof Dust Proof 7.5KW 3 Phase Outdoor Solar Water Pump Drive
Model:SG600-7.5KW-D-IP54
Solar pumping system is a series-parallel absorb sunlight radiation energy through solar panels and convert it into AC power by inverter to drive centrifugal pump, irrigation pump, axial flow pump, mixed-flow pump of deep well water pump system. According to the change of intensity of sunlight, solar pump inverter system adjusts output frequency in real time, output power close to the sun cell array maximum power.
ZK Solar Water Pumping Solution is a fully automatic system designed to provide water at affordable cost for people with limited or no access to electricity. It uses the most advanced variable speed drive to regulate the speed of a 3-phase AC motor depending upon the solar energy available from the solar panel.

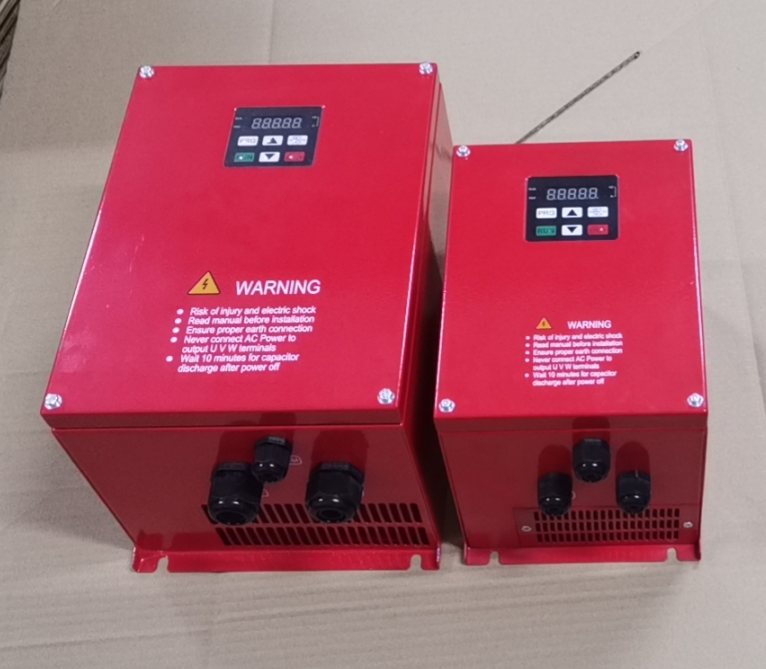

SG600 sealed frequency inverter is enhanced version of SG600 series solar pump inverter, built in with IP54 IP65 protection grade.With excellent in anti-dust, water proof, anti-grease and anti-corrosion properties, this inverter can using in outdoor without waterproof cabinet.
Applications
1 . Ground water lowering,
2 . Irrigation systems
3 . Industrial Application
4 . Drip irrigation& sprinkler
5 . Tank/ cistern filling
6 . Wildlife refuge
7 . Rural water supply for ranches,
8 . cabins, and cottages
9 . Fountains.
Descriptions and Features
1. Maximum power point tracking (MPPT) with fast response speed and stable operation efficiency> 99.6%
2. Suits for most 3 phase AC pumps and AC PMSM & IM pumps.
3. The working voltage of solar panel can set by manual or MPPT automatically tracking
4. Compatible with dual power input, AC grid and DC power supply input
5. Built in automatic sleep-wake up function
6. Digital control for fully automatic operation, data storage and protective functions
7. Intelligent power module (IPM) for the main circuit
8. LED display operating panel and support remote control.
9. IP54 IP65.
Specification:
| Motor type | Control for permanent magnet synchronous motor and asynchronous motor pumps. |
| Rated output voltage | 3-Phase,110V/160V/220V. 3-phase, 220V/380V/460V |
| Output frequency range | 0~maximum frequency 600Hz. |
| MPPT efficiency | 97%, |
| Ambient temperature range | G-type for submersible pumps, 150% rated current for 60s, 180% rated current for 2s . P type for general pumps, 120% rated current for 60s, 150% rated current for 2s |
| Solar pump control special performance | MPPT ( maximum power point tracking), CVT (constant voltage tracking), auto/manual operation, dry run protection, low stop frequency protection, minimum power input, motor maximum current protection, flow calculating, energy generated calculating and water tank level detected |
| Protection function | Phase loss protection, phase short circuit protection, ground to phase circuit protection , input and output short circuit protection. Stall protection, lightning protection |
| Protection degree | IP54,IP65 Air force cooling |
| Running mode | MPPT or CVT |
| Altitude | Below 1000m; above 1000m, derated 1% for every additional 100m. |
| Enhanced version of AC drive | CE, Design based on vector control motor AC drive, more specification please refer to S600 or S100 vector control drive operation manual |
Model List:
| IP54 outdoor uisng: 4T type, 250 to 800VDC or 380VAC input, 3 Phase 0-380VAC ouptut |
| S.N | MODELS | PICTURES | Rate current (A) | Rated Power | DC input range | Best Voc input | Output voltage |
| 1 | SD600-4KW-D-IP54 | 10A | 4.0KW | 4.0KW | 250-800 | 650 | 0-380 |
| 2 | SD600-5.5KW-D-IP54 | 13A | 5.5KW | 5.5KW | 250-800 | 650 | 0-380 |
| 3 | SD600-7.5KW-D-IP54 | 17A | 7.5KW | 7.5KW | 250-800 | 650 | 0-380 |
| 4 | SD600-4K0GB-4T-IP54 | 10A | 4.0KW | 4.0KW | 250-800 | 650 | 0-380 |
| 5 | SD600-5K5GB-4T-IP54 | 13A | 5.5KW | 5.5KW | 250-800 | 650 | 0-380 |
| 6 | SD600-7K5GB-4T-IP54 | 17A | 7.5KW | 7.5KW | 250-800 | 650 | 0-380 |
| 7 | SD600-011GB-4T-IP54 | 25A | 11KW | 11KW | 250-800 | 650 | 0-380 |
| 8 | SD600-015GB-4T-IP54 | 32A | 15KW | 15KW | 250-800 | 650 | 0-380 |
| 9 | SD600-018GB-4T-IP54 | 37A | 18KW | 18KW | 250-800 | 650 | 0-380 |
| 10 | SD600-022GB-4T-IP54 | 45A | 22KW | 22KW | 250-800 | 650 | 0-380 |
