2HP 1.5KW Solar Water Pump Inverter 220V VFD Solar Pump Controller For Irrigation System

Name: 2HP 15KW Solar Water Pump Inverter 220V VFD Solar Pump Controller For Irrigation System
Brand: ZK/ZUN
Price: 1 USD

Brand Name : ZK/ZUN

Model Number : SG600-1K5GB-4T-D

Certification : ISO CE

Place of Origin : SHENZHEN CHINA

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 6000 units per month

Delivery Time : 3-5 work days

Packaging Details : Standard Package

Product name : Solar pump inverter

Rate current : 7A

Motor type : PMSM and IM

Warranty : 18 Months

Frequency : 50/60 Hz

Efficiency : 99%

Contact Now

Item		Specifications
Input	Rated Voltage/Frequency	150-450VDC for S2 220V pumps, 0.75KW-4.0KW( support output single phase) 250-900VDC for 4T 380V pumps, 0.75KW-15kw 250-800VDC for 4T 380V pumps, 18.5KW-500kw
	Recommended MPPT voltage(VDC)	S1 series: Vmp 131 to 350 VDC S2 series: Vmp 280 to 375VDC 4T series: Vmp 450 to 750 VDC
	VFD Efficiency	above 96%
	MPPT Efficiency	above 99.6%
	Power factor	above 0.94( with DC reactor)
	Allowable Variablerange	Voltage:-20%~+20%, Frequency:±5%
Output	Rated Voltage	0~110V 220V 380V 480V
	Frequency Resolution	0.01Hz
	Overload capacity	G type-150% Rated Curren/1 minute,180%:10s,200%:rated
Basic Functions	Motor type	permanent magnet servo motor and asynchronous motor pumps.
	Solar pump control special performance	MPPT ( maximum power point tracking), CVT (constant voltage tracking), auto/manual operation, dry run protection, low stop frequency protection, minimum power input, motor maximum current protection, flow calculating, energy generated calculating
	Running mode	MPPT , CVT, variable frequency mode
	Communication	RS485 Standard Interface,supporting two formats MODBUS protocol
Protection		Over Current protection;Over Voltage protection;Under Voltage protection; Over heat protection;Overload protection
Environment	Altitude	Below 1000m; above 1000m, derated 1% for every additional 100m.
	temperature	-10℃~+50℃
	Ambient temperature	Less than 90%RH, no water condenses
	Vibration	Less than 5.9m/sec 2(0.6G)
	Storage temperature	-30℃~+60℃
Structure	Level of Protection	standard IP20, operation IP54 IP55
Structure	Cooling-down method	Forced air cooling
Installation		Indoor, ,free from direct sunlight, dust, corrosive gas,Oiliness gas, water vapour

2HP 1.5KW Solar Water Pump Inverter 220V VFD Solar Pump Controller For Irrigation System Manufactures

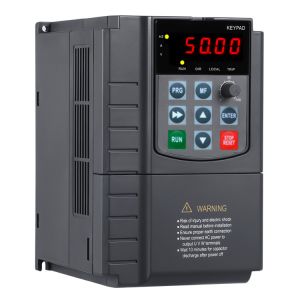

2HP 1.5KW Solar Water Pump Inverter 220V VFD Solar Pump Controller For Irrigation System Images
